Technical Specifications

Ratings CRGO Silicon Steel Transformers - Upto 5 to100 KVA Amorphous Metal Transformers - Upto 167 kVA
Applicable Standards IS, IEC, ANSI, JIS, etc.
Cooling ONAN, OA
Insulating Fluid Mineral Oil to specification
Frequency 50 Hz, 60 Hz
Winding material Copper / Aluminium
Taping range ± 5% in steps of 2.5% (Other tapings as required)
Impedance In line with applicable standards.

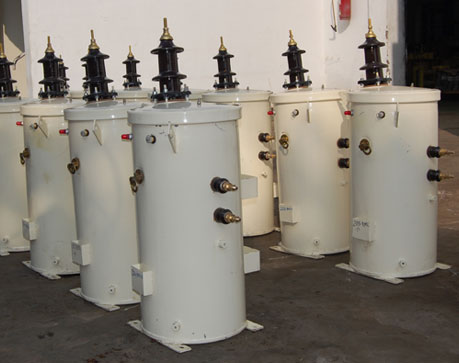

  • Single Phase Transformers - Stardelta

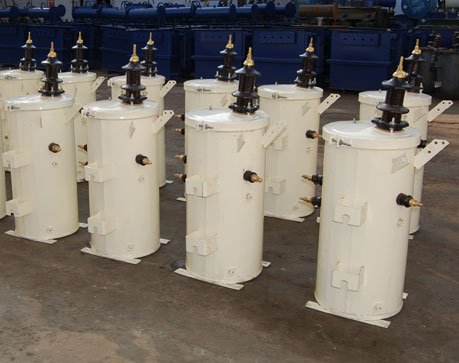

  • Single Phase Transformers - Stardelta

Standard Fittings

include Pole Mounting Brackets, Lifting Lugs, Pressure Relief Device/Self Venting Top Cover, Tank Grounding Provision, Rating and Diagram Plate, HV & LV Bushings with fittings.

Optional Fittings

include Lightning Arrester / Arcing Horns, High Voltage Neutral Bushing, Terminal Connectors, Tap changer for external operation, Cable Terminations, Complete Self Protection feature.
